How to use gPhotoShow to build a digital picture frame - Part 6
Power Consumption
The mini pc alone running gPhotoShow with the dissolve transition consumes 2.3 Watts (with a 240 Gb SSD power consumption is 3.3 Watts). Using Pan & Zoom consumption raises to 6-7 Watts
The old Philips monitor consumes 22 Watts but newer ones may consume less than 20 watts
Cpu Usage
CPU usage and cpu temperature graphs measured over a period of 5 minutes.

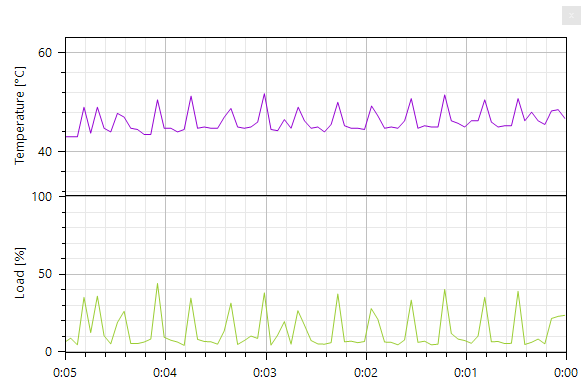

Dissolve transition and image change every 30 seconds. The peaks corresponds to image changes

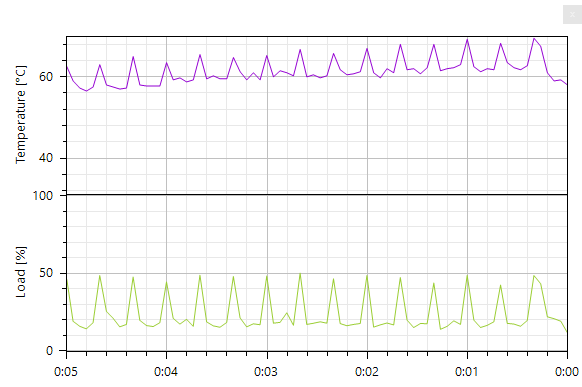

Pan & Zoom

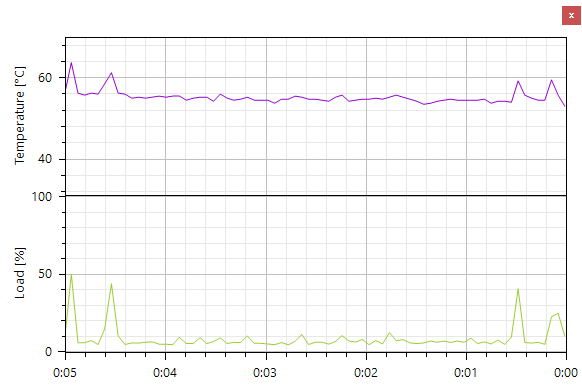

Monitor powered off. gPhotoShow stops changing images, no cpu peaks but temperature stayed a little higher after pan & zoom test

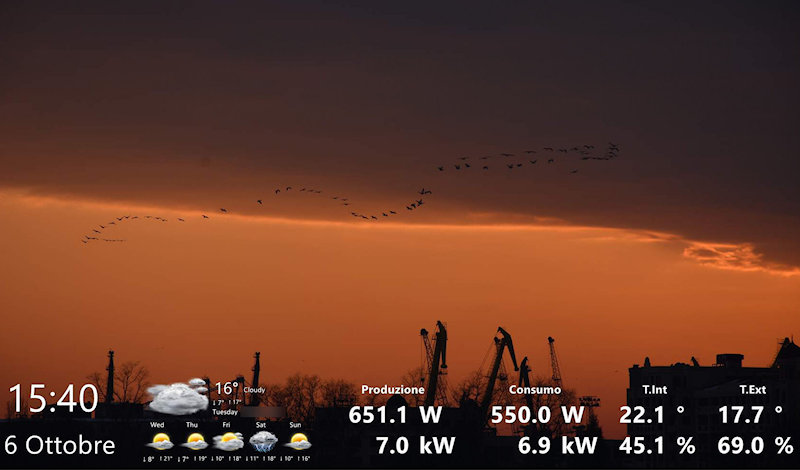

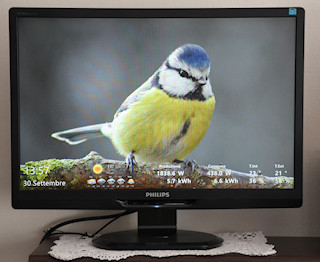

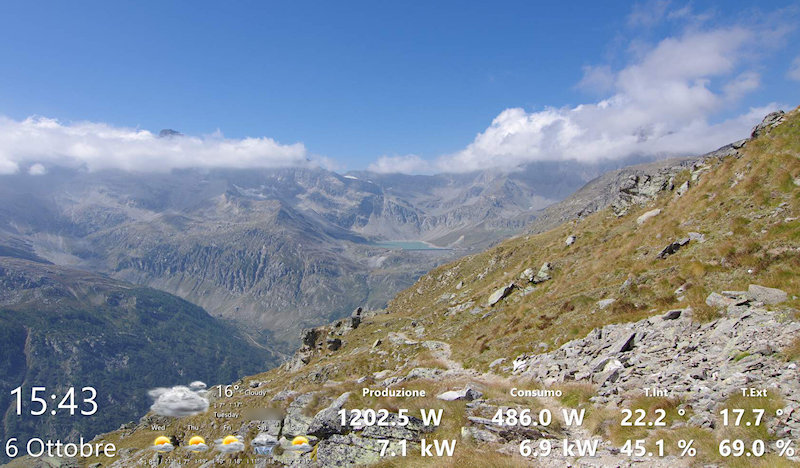

Final Result
